Description

LEPA N600-SB Power supply features hydraulic bearing fan for cooling purpose while offering durable performance. Offers over power, over voltage and short-circuit protection for more safety. Comes in racing car style for attractive look. Extended CPU connector cable enables easy installation. SATA power connector supports all SSD. Measures 3.4" x 5.9" x 5.5" and has power rating of 600 W. Has input current rating of 12 A at 110 V and 6 A at 220 V.

​

​

​

​

​

​

​

​

​

​

​

​

​

N600-SB

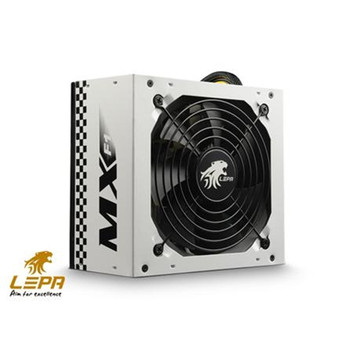

Lepa N600-SB MX F1 Series 600W ATX12V Power Supply

  • Hydraulic Bearing Fan delivers silent, cooling, and durable performance

  • 6+2P PCI-E connector supplied supporting extreme graphic cards

  • SATA power connector with 3.3V & 5V rails support all SSD

  • Extended CPU connector cable to 60cm facilitates installation with bottom-mounted PSU chassis

Specifications

  • Input power of 110 - 220 V for normal operation

  • Gives output voltage of 3.3 VDC at 18 A, 5 VDC at 22 A, 12 VDC at 20 A, -12 VDC at 500 mA, 5 V @ 2.50 A for effectual use

  • Consumes 600 W output power for superior performance

  • Has an input current rating of 12 A/6 A for secure use

  • Supports frequency ranging from 50 - 60 Hz and internal form factor for noise less output

  • 1 x 24pin ATX motherboard, 1 x 4pin ATX12V motherboard, 2 x 6+2pin PCI-E, 7 x SATA connectors for an easy connection

  • Extended CPU connector cable to 60cm facilitates installation with bottom-mounted PSU chassis

  • Gives over voltage, over power, short circuit protection for secure use of equipment

  • Racing car style coating for silent cooling

  • Half bridge design provides great stability and reliability
